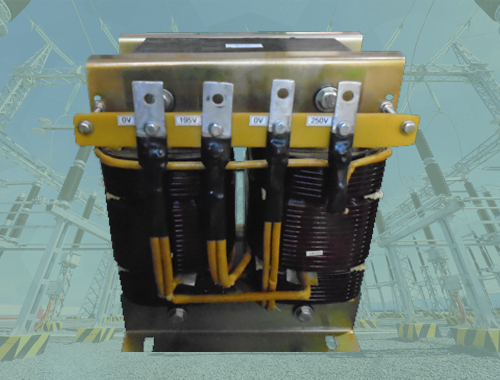

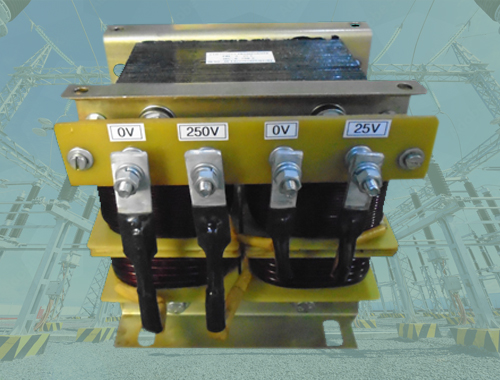

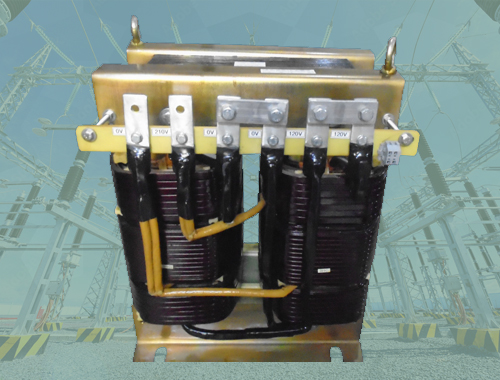

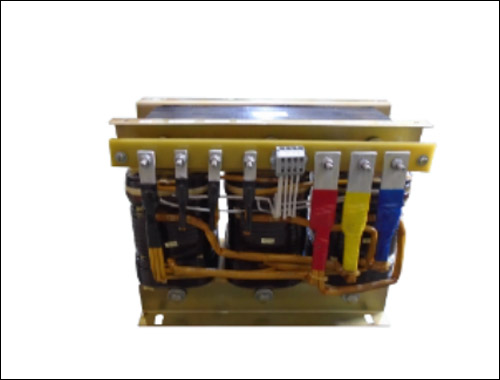

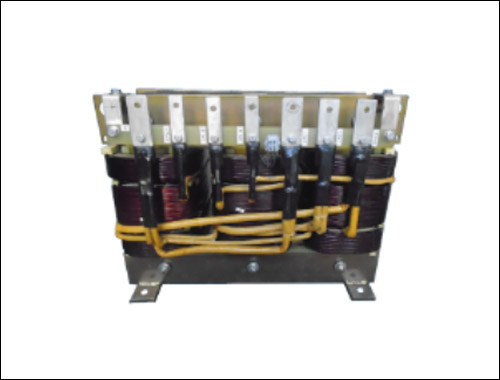

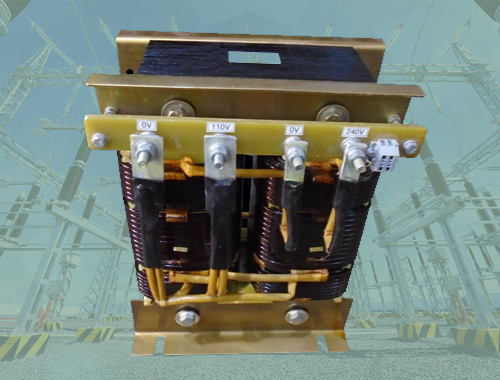

An inverter transformer, also known as a power inverter transformer, is a type of
transformer specifically designed for use in power inverters. A power inverter is a
device that converts direct current (DC) power into alternating current (AC) power.
Inverter transformers play a crucial role in this conversion process.
The main function of an inverter transformer is to step up or step down the voltage
level of the DC power input to the desired AC output voltage level. The transformation of voltage is necessary because most power inverters are designed to operate at different voltage levels depending on the application, such as residential, commercial, or industrial.
Inverter transformers are typically used in applications where AC power is required from a DC source, such as:
Renewable energy systems: Inverter transformers are essential components in solar power systems and wind energy systems. They convert the DC power generated by
solar panels or wind turbines into AC power suitable for feeding into the electrical grid or for local use.
Uninterruptible Power Supply (UPS): Inverter transformers are used in UPS systems to provide backup power during electrical outages. They convert the DC power stored in batteries into AC power to keep critical loads running.
Electric vehicle charging: Inverter transformers are utilized in electric vehicle charging stations to convert the DC power from the charging infrastructure into the appropriate AC power to charge the vehicle’s battery.
Industrial applications: Inverter transformers find application in various industrial settings where AC power is required from a DC power source, such as motor drives, industrial automation, and machinery.
Inverter transformers are designed to handle high-frequency operation to efficiently
convert the DC power to AC power. They are often constructed using high-quality
magnetic materials and insulation systems to minimize losses and ensure reliable
operation. Additionally, they may incorporate features like multiple windings and
advanced cooling techniques to meet specific application requirements and provide
optimal performance.
It's important to note that the design and specifications of inverter transformers can vary depending on the specific application, power requirements, and the type of
inverter technology used (e.g., PWM inverters, grid-tie inverters, etc.).
