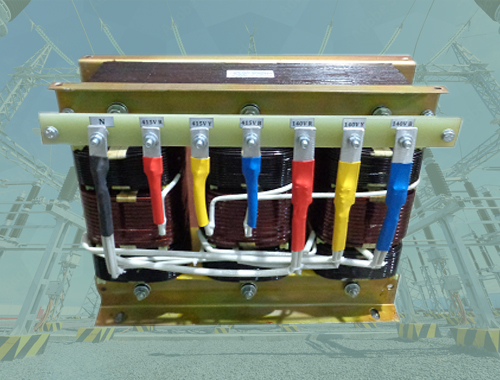

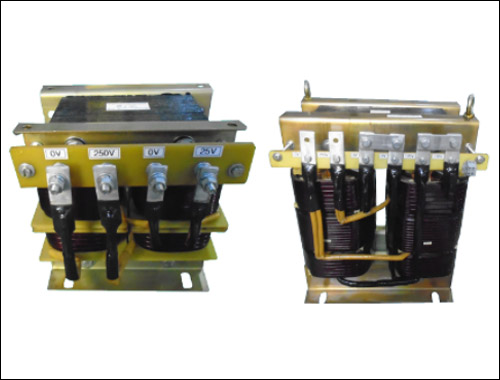

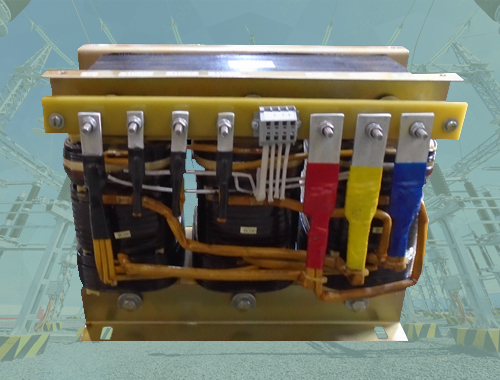

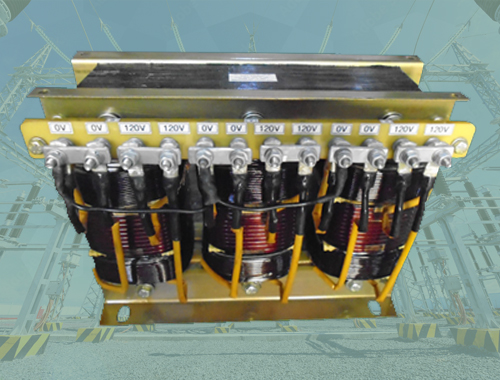

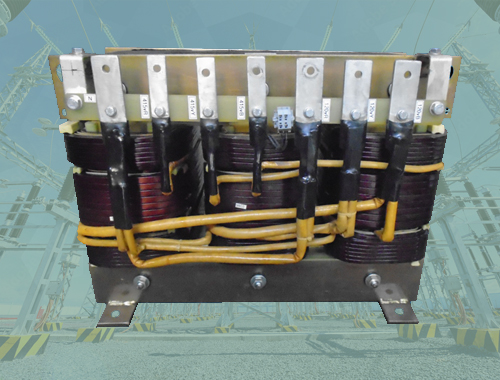

An UPS transformer, also known as an uninterruptible power supply transformer, is a
specific type of transformer used in uninterruptible power supply systems. UPS
transformers play a critical role in providing continuous and reliable power to
connected loads, especially during power outages or voltage fluctuations.
The primary function of an UPS transformer is to step up or step down the voltage
level of the incoming AC power supply to match the required voltage for the
connected load. This ensures that the load receives stable and regulated AC power
regardless of the quality or availability of the input power source.
UPS transformers are typically used in conjunction with other components in an
uninterruptible power supply system, including rectifiers, batteries, and inverters. The overall UPS system works as follows:
Rectification: The incoming AC power from the utility grid is converted into DC power using rectifiers. This DC power charges the UPS battery bank.
Battery backup: The UPS battery bank stores the DC power, providing a source of energy during power outages or when the input power source is unavailable.
Inversion: The UPS transformer takes the DC power from the battery bank and
converts it back into AC power. This AC power is then fed through an inverter to
provide a stable and regulated AC output.
Load support: The UPS transformer ensures that the AC power output matches the
voltage and frequency requirements of the connected load. It also provides isolation
between the input and output circuits, protecting the load from electrical disturbances or anomalies in the input power.
UPS transformers are designed to provide galvanic isolation between the input and
output circuits, which helps protect sensitive electronic equipment from power
surges, voltage spikes, and other electrical disturbances. They also incorporate
features like voltage regulation, harmonic suppression, and transient voltage
suppression to ensure high-quality power output.
The specifications and design of UPS transformers may vary depending on the capacity
and requirements of the UPS system, such as the power rating, voltage rating,
efficiency, and size. Different UPS topologies, such as online, offline, or line-
interactive, may also influence the design and characteristics of the UPS transformer.
